Previous   Next   Contents       (Exim 4.50 Specification)

39. Access control lists

Access Control Lists (ACLs) are defined in a separate section of the run time configuration file, headed by “begin acl”. Each ACL definition starts with a name, terminated by a colon. Here is a complete ACL section that contains just one very small ACL:

  begin acl

  small_acl:
    accept   hosts = one.host.only

You can have as many lists as you like in the ACL section, and the order in which they appear does not matter. The lists are self-terminating.

The majority of ACLs are used to control Exim's behaviour when it receives certain SMTP commands. This applies both to incoming TCP/IP connections, and when a local process submits a message using SMTP by specifying the -bs option. The most common use is for controlling which recipients are accepted in incoming messages. In addition, you can define an ACL that is used to check local non-SMTP messages. The default configuration file contains an example of a realistic ACL for checking RCPT commands. This is discussed in chapter 7.

39.1 Testing ACLs

The -bh command line option provides a way of testing your ACL configuration locally by running a fake SMTP session with which you interact. The host relay-test.mail-abuse.org provides a service for checking your relaying configuration (see section 39.37 for more details).

39.2 Specifying when ACLs are used

In order to cause an ACL to be used, you have to name it in one of the relevant options in the main part of the configuration. These options are:

  acl_not_smtp  ACL for non-SMTP messages
  acl_smtp_auth  ACL for AUTH
  acl_smtp_connect  ACL for start of SMTP connection
  acl_smtp_data  ACL after DATA is complete
  acl_smtp_etrn  ACL for ETRN
  acl_smtp_expn  ACL for EXPN
  acl_smtp_helo  ACL for HELO or EHLO
  acl_smtp_mail  ACL for MAIL
  acl_smtp_mailauth  ACL for the AUTH parameter of MAIL
  acl_smtp_mime  ACL for content-scanning MIME parts
  acl_smtp_predata  ACL at start of DATA command
  acl_smtp_quit  ACL for QUIT
  acl_smtp_rcpt  ACL for RCPT
  acl_smtp_starttls  ACL for STARTTLS
  acl_smtp_vrfy  ACL for VRFY

For example, if you set

  acl_smtp_rcpt = small_acl

the little ACL defined above is used whenever Exim receives a RCPT command in an SMTP dialogue. The majority of policy tests on incoming messages can be done when RCPT commands arrive. A rejection of RCPT should cause the sending MTA to give up on the recipient address contained in the RCPT command, whereas rejection at other times may cause the client MTA to keep on trying to deliver the message. It is therefore recommended that you do as much testing as possible at RCPT time.

39.3 The non-SMTP ACL

The non-SMTP ACL applies to all non-interactive incoming messages, that is, it applies to batch SMTP as well as to non-SMTP messages. (Batch SMTP is not really SMTP.) This ACL is run just before the local_scan() function. Any kind of rejection is treated as permanent, because there is no way of sending a temporary error for these kinds of message. Many of the ACL conditions (for example, host tests, and tests on the state of the SMTP connection such as encryption and authentication) are not relevant and are forbidden in this ACL.

39.4 The connect ACL

The ACL test specified by acl_smtp_connect happens after the test specified by host_reject_connection (which is now an anomaly) and any TCP Wrappers testing (if configured).

39.5 The DATA ACLs

Two ACLs are associated with the DATA command, because it is two-stage command, with two responses being sent to the client. When the DATA command is received, the ACL defined by acl_smtp_predata is obeyed. This gives you control after all the RCPT commands, but before the message itself is received. It offers the opportunity to give a negative response to the DATA command before the data is transmitted. Header lines added by MAIL or RCPT ACLs are not visible at this time, but any that are defined here are visible when the acl_smtp_data ACL is run.

You cannot test the contents of the message, for example, to verify addresses in the headers, at RCPT time or when the DATA command is received. Such tests have to appear in the ACL that is run after the message itself has been received, before the final response to the DATA command is sent. This is the ACL specified by acl_smtp_data, which is the second ACL that is associated with the DATA command.

For both of these ACLs, it is not possible to reject individual recipients. An error response rejects the entire message. Unfortunately, it is known that some MTAs do not treat hard (5xx) responses to the DATA command (either before or after the data) correctly – they keep the message on their queues and try again later, but that is their problem, though it does waste some of your resources.

39.6 The MIME ACL

The acl_smtp_mime option is available only when Exim is compiled with the content-scanning extension. For details, see chapter 40.

39.7 The QUIT ACL

The ACL for the SMTP QUIT command is anomalous, in that the outcome of the ACL does not affect the response code to QUIT, which is always 221. Thus, the ACL does not in fact control any access. For this reason, the only verbs that are permitted are accept and warn.

This ACL can be used for tasks such as custom logging at the end of an SMTP session. For example, you can use ACL variables in other ACLs to count messages, recipients, etc., and log the totals at QUIT time using one or more logwrite modifiers on a warn verb.

You do not need to have a final accept, but if you do, you can use a message modifier to specify custom text that is sent as part of the 221 response to QUIT.

This ACL is run only for a “normal” QUIT. For certain kinds of disastrous failure (for example, failure to open a log file, or when Exim is bombing out because it has detected an unrecoverable error), all SMTP commands from the client are given temporary error responses until QUIT is received or the connection is closed. In these special cases, the QUIT ACL does not run.

39.8 Finding an ACL to use

The value of an acl_smtp_xxx option is expanded before use, so you can use different ACLs in different circumstances. The resulting string does not have to be the name of an ACL in the configuration file; there are other possibilities. Having expanded the string, Exim searches for an ACL as follows:

39.9 ACL return codes

Except for the QUIT ACL, which does not affect the SMTP return code (see section 39.7 above), the result of running an ACL is either “accept” or “deny”, or, if some test cannot be completed (for example, if a database is down), “defer”. These results cause 2xx, 5xx, and 4xx return codes, respectively, to be used in the SMTP dialogue. A fourth return, “error”, occurs when there is an error such as invalid syntax in the ACL. This also causes a 4xx return code.

For the non-SMTP ACL, “defer” and “error” are treated in the same way as “deny”, because there is no mechanism for passing temporary errors to the submitters of non-SMTP messages.

ACLs that are relevant to message reception may also return “discard”. This has the effect of “accept”, but causes either the entire message or an individual recipient address to be discarded. In other words, it is a blackholing facility. Use it with care.

If the ACL for MAIL returns “discard”, all recipients are discarded, and no ACL is run for subsequent RCPT commands. The effect of “discard” in a RCPT ACL is to discard just the one recipient address. If there are no recipients left when the message's data is received, the DATA ACL is not run. A “discard” return from the DATA or the non-SMTP ACL discards all the remaining recipients. The “discard” return is not permitted for the acl_smtp_predata ACL.

The local_scan() function is always run, even if there are no remaining recipients; it may create new recipients.

39.10 Unset ACL options

The default actions when any of the acl_xxx options are unset are not all the same. Note: These defaults apply only when the relevant ACL is not defined at all. For any defined ACL, the default action when control reaches the end of the ACL statements is “deny”.

For acl_not_smtp, acl_smtp_auth, acl_smtp_connect, acl_smtp_data, acl_smtp_helo, acl_smtp_mail, acl_smtp_mailauth, acl_smtp_mime, acl_smtp_predata, acl_smtp_quit, and acl_smtp_starttls, the action when the ACL is not defined is “accept”.

For the others (acl_smtp_etrn, acl_smtp_expn, acl_smtp_rcpt, and acl_smtp_vrfy), the action when the ACL is not defined is “deny”. This means that acl_smtp_rcpt must be defined in order to receive any messages over an SMTP connection. For an example, see the ACL in the default configuration file.

39.11 Data for message ACLs

When a MAIL or RCPT ACL, or either of the DATA ACLs, is running, the variables that contain information about the host and the message's sender (for example, $sender_host_address and $sender_address) are set, and can be used in ACL statements. In the case of RCPT (but not MAIL or DATA), $domain and $local_part are set from the argument address.

When an ACL for the AUTH parameter of MAIL is running, the variables that contain information about the host are set, but $sender_address is not yet set. Section 33.2 contains a discussion of this parameter and how it is used.

The $message_size variable is set to the value of the SIZE parameter on the MAIL command at MAIL, RCPT and pre-data time, or to -1 if that parameter is not given. The value is updated to the true message size by the time the final DATA ACL is run (after the message data has been received).

The $rcpt_count variable increases by one for each RCPT command received. The $recipients_count variable increases by one each time a RCPT command is accepted, so while an ACL for RCPT is being processed, it contains the number of previously accepted recipients. At DATA time (for both the DATA ACLs), $rcpt_count contains the total number of RCPT commands, and $recipients_count contains the total number of accepted recipients.

39.12 Data for non-message ACLs

When an ACL is being run for AUTH, EHLO, ETRN, EXPN, HELO, STARTTLS, or VRFY, the remainder of the SMTP command line is placed in $smtp_command_argument. This can be tested using a condition condition. For example, here is an ACL for use with AUTH, which insists that either the session is encrypted, or the CRAM-MD5 authentication method is used. In other words, it does not permit authentication methods that use cleartext passwords on unencrypted connections.

  acl_check_auth:
    accept encrypted = *
    accept condition = ${if eq{${uc:$smtp_command_argument}}\
                       {CRAM-MD5}}
    deny   message   = TLS encryption or CRAM-MD5 required

(Another way of applying this restriction is to arrange for the authenticators that use cleartext passwords not to be advertised when the connection is not encrypted. You can use the generic server_advertise_condition authenticator option to do this.)

39.13 Format of an ACL

An individual ACL consists of a number of statements. Each statement starts with a verb, optionally followed by a number of conditions and “modifiers”. Modifiers can change the way the verb operates, define error and log messages, set variables, insert delays, and vary the processing of accepted messages.

If all the conditions are met, the verb is obeyed. The same condition may be used (with different arguments) more than once in the same statement. This provides a means of specifying an “and” conjunction between conditions. For example:

  deny  dnslists = list1.example
        dnslists = list2.example

If there are no conditions, the verb is always obeyed. Exim stops evaluating the conditions and modifiers when it reaches a condition that fails. What happens then depends on the verb (and in one case, on a special modifier). Not all the conditions make sense at every testing point. For example, you cannot test a sender address in the ACL that is run for a VRFY command.

39.14 ACL verbs

The ACL verbs are as follows:

At the end of each ACL there is an implicit unconditional deny.

As you can see from the examples above, the conditions and modifiers are written one to a line, with the first one on the same line as the verb, and subsequent ones on following lines. If you have a very long condition, you can continue it onto several physical lines by the usual backslash continuation mechanism. It is conventional to align the conditions vertically.

39.15 ACL variables

There are some special variables that can be set during ACL processing. They can be used to pass information between different ACLs, different invocations of the same ACL in the same SMTP connection, and between ACLs and the routers, transports, and filters that are used to deliver a message. There are two sets of these variables:

When a message is accepted, the current values of all the ACL variables are preserved with the message and are subsequently made available at delivery time. The ACL variables are set by modifier called set. For example:

  accept hosts = whatever
         set acl_m4 = some value

Note: a leading dollar sign is not used when naming a variable that is to be set. If you want to set a variable without taking any action, you can use a warn verb without any other modifiers or conditions.

39.16 Condition and modifier processing

An exclamation mark preceding a condition negates its result. For example,

  deny   domains = *.dom.example
        !verify = recipient

causes the ACL to return “deny” if the recipient domain ends in dom.example and the recipient address cannot be verified.

The arguments of conditions and modifiers are expanded. A forced failure of an expansion causes a condition to be ignored, that is, it behaves as if the condition is true. Consider these two statements:

  accept  senders = ${lookup{$host_name}lsearch\
                    {/some/file}{$value}fail}
  accept  senders = ${lookup{$host_name}lsearch\
                    {/some/file}{$value}{}}

Each attempts to look up a list of acceptable senders. If the lookup succeeds, the returned list is searched, but if the lookup fails the behaviour is different in the two cases. The fail in the first statement causes the condition to be ignored, leaving no further conditions. The accept verb therefore succeeds. The second statement, however, generates an empty list when the lookup fails. No sender can match an empty list, so the condition fails, and therefore the accept also fails.

ACL modifiers appear mixed in with conditions in ACL statements. Some of them specify actions that are taken as the conditions for a statement are checked; others specify text for messages that are used when access is denied or a warning is generated. The control modifier affects the way an incoming message is handled.

The positioning of the modifiers in an ACL statement important, because the processing of a verb ceases as soon as its outcome is known. Only those modifiers that have already been encountered will take effect. For example, consider this use of the message modifier:

  require message = Can't verify sender
          verify = sender
          message = Can't verify recipient
          verify = recipient
          message = This message cannot be used

If sender verification fails, Exim knows that the result of the statement is “deny”, so it goes no further. The first message modifier has been seen, so its text is used as the error message. If sender verification succeeds, but recipient verification fails, the second message is used. If recipient verification succeeds, the third message becomes “current”, but is never used because there are no more conditions to cause failure.

For the deny verb, on the other hand, it is always the last message modifier that is used, because all the conditions must be true for rejection to happen. Specifying more than one message modifier does not make sense, and the message can even be specified after all the conditions. For example:

  deny   hosts = ...
        !senders = *@my.domain.example
         message = Invalid sender from client host

The “deny” result does not happen until the end of the statement is reached, by which time Exim has set up the message.

39.17 ACL modifiers

The ACL modifiers are as follows:


control = <text>

This modifier affects the subsequent processing of the SMTP connection or of an incoming message that is accepted. The effect of the first type of control lasts for the duration of the connection, whereas the effect of the second type lasts only until the current message has been received. The message-specific controls always apply to the whole message, not to individual recipients, even if the control modifier appears in a RCPT ACL.

As there are now quite a few controls that can be applied, they are described separately in section 39.18. The control modifier can be used in several different ways. For example:


delay = <time>

This modifier causes Exim to wait for the time interval before proceeding. The time is given in the usual Exim notation. This modifier may appear in any ACL. The delay happens as soon as the modifier is processed. However, when testing Exim using the -bh option, the delay is not actually imposed (an appropriate message is output instead).

Like control, delay can be used with accept or deny, for example:

  deny    ...some conditions...
          delay = 30s

The delay happens if all the conditions are true, before the statement returns “deny”. Compare this with:

  deny    delay = 30s
          ...some conditions...

which waits for 30s before processing the conditions. The delay modifier can also be used with warn and together with control:

  warn ...some conditions...
   delay = 2m
   control = freeze
  accept ...


endpass

This modifier, which has no argument, is recognized only in accept statements. It marks the boundary between the conditions whose failure causes control to pass to the next statement, and the conditions whose failure causes the ACL to return “deny”. See the description of accept above.


log_message = <text>

This modifier sets up a message that is used as part of the log message if the ACL denies access or a warn statement's conditions are true. For example:

  require log_message = wrong cipher suite $tls_cipher
          encrypted   = DES-CBC3-SHA

log_message adds to any underlying error message that may exist because of the condition failure. For example, while verifying a recipient address, a :fail: redirection might have already set up a message. Although the message is usually defined before the conditions to which it applies, the expansion does not happen until Exim decides that access is to be denied. This means that any variables that are set by the condition are available for inclusion in the message. For example, the $dnslist_<xxx> variables are set after a DNS black list lookup succeeds. If the expansion of log_message fails, or if the result is an empty string, the modifier is ignored.

If you want to use a warn statement to log the result of an address verification, you can use $acl_verify_message to include the verification error message.

If log_message is used with a warn statement, “Warning:” is added to the start of the logged message. If the same warning log message is requested more than once while receiving a single email message, only one copy is actually logged. If you want to log multiple copies, use logwrite instead of log_message. In the absence of log_message and logwrite, nothing is logged for a succesful warn statement.

If log_message is not present and there is no underlying error message (for example, from the failure of address verification), but message is present, the message text is used for logging rejections. However, if any text for logging contains newlines, only the first line is logged. In the absence of both log_message and message, a default built-in message is used for logging rejections.


logwrite = <text>

This modifier writes a message to a log file as soon as it is encountered when processing an ACL. (Compare log_message, which, except in the case of warn, is used only if the ACL statement denies access.) The logwrite modifier can be used to log special incidents in ACLs. For example:

  accept <some special conditions>
   control = freeze
   logwrite = froze message because ...

By default, the message is written to the main log. However, it may begin with a colon, followed by a comma-separated list of log names, and then another colon, to specify exactly which logs are to be written. For example:

  logwrite = :main,reject: text for main and reject logs
  logwrite = :panic: text for panic log only

message = <text>

This modifier sets up a text string that is expanded and used as an error message if the current statement causes the ACL to deny access. The expansion happens at the time Exim decides that access is to be denied, not at the time it processes message. If the expansion fails, or generates an empty string, the modifier is ignored. For ACLs that are triggered by SMTP commands, the message is returned as part of the SMTP error response.

The message modifier is also used with the warn verb to specify one or more header lines to be added to an incoming message when all the conditions are true. See section 39.19 for more details. If message is used with warn in an ACL that is not concerned with receiving a message, it has no effect.

The text is literal; any quotes are taken as literals, but because the string is expanded, backslash escapes are processed anyway. If the message contains newlines, this gives rise to a multi-line SMTP response. Like log_message, the contents of message are not expanded until after a condition has failed.

If message is used on a statement that verifies an address, the message specified overrides any message that is generated by the verification process. However, the original message is available in the variable $acl_verify_message, so you can incorporate it into your message if you wish. In particular, if you want the text from :fail: items in redirect routers to be passed back as part of the SMTP response, you should either not use a message modifier, or make use of $acl_verify_message.


set <acl_name> = <value>

This modifier puts a value into one of the ACL variables (see section 39.15).



39.18 Use of the control modifier

The control modifier supports the following settings:


control = caseful_local_part
control = caselower_local_part

These two controls are permitted only in the ACL specified by acl_smtp_rcpt (that is, during RCPT processing). By default, the contents of $local_part are lower cased before ACL processing. If “caseful_local_part” is specified, any uppercase letters in the original local part are restored in $local_part for the rest of the ACL, or until a control that sets “caselower_local_part” is encountered.

This control affects only the current recipient. Moreover, it applies only to local part handling that takes place directly in the ACL (for example, as a key in lookups). If a test to verify the recipient is obeyed, the case-related handling of the local part during the verification is controlled by the router configuration (see the caseful_local_part generic router option).

This facility could be used, for example, to add a spam score to local parts containing upper case letters. For example, using $acl_m4 to accumulate the spam score:

  warn  control = caseful_local_part
        set acl_m4 = ${eval:\
                       $acl_m4 + \
                       ${if match{$local_part}{[A-Z]}{1}{0}}\
                      }
        control = caselower_local_part

Notice that we put back the lower cased version afterwards, assuming that is what is wanted for subsequent tests.


control = enforce_sync
control = no_enforce_sync

These controls make it possible to be selective about when SMTP synchronization is enforced. The global option smtp_enforce_sync specifies the initial state of the switch (it is true by default). See the description of this option in chapter 14 for details of SMTP synchronization checking.

The effect of these two controls lasts for the remainder of the SMTP connection. They can appear in any ACL except the one for the non-SMTP messages. The most straightforward place to put them is in the ACL defined by acl_smtp_connect, which is run at the start of an incoming SMTP connection, before the first synchronization check. The expected use is to turn off the synchronization checks for badly-behaved hosts that you nevertheless need to work with.


control = fakereject/<message>

This control is permitted only for the MAIL, RCPT, and DATA ACLs, in other words, only when an SMTP message is being received. If Exim accepts the message, instead the final 250 response, a 550 rejection message is sent. However, Exim proceeds to deliver the message as normal. The control applies only to the current message, not to any subsequent ones that may be received in the same SMTP connection.

The text for the 550 response is taken from the control modifier. If no message is supplied, the following is used:

  550-Your message has been rejected but is being
  550-kept for evaluation.
  550-If it was a legitimate message, it may still be
  550 delivered to the target recipient(s).

This facilty should be used with extreme caution.


control = freeze

This control is permitted only for the MAIL, RCPT, DATA, and non-SMTP ACLs, in other words, only when a message is being received. If the message is accepted, it is placed on Exim's queue and frozen. The control applies only to the current message, not to any subsequent ones that may be received in the same SMTP connection.


control = no_mbox_unspool

This control is available when Exim is compiled with the content scanning extension. Content scanning may require a copy of the current message, or parts of it, to be written in “mbox format” to a spool file, for passing to a virus or spam scanner. Normally, such copies are deleted when they are no longer needed. If this control is set, the copies are not deleted. The control applies only to the current message, not to any subsequent ones that may be received in the same SMTP connection. It is provided for debugging purposes and is unlikely to be useful in production.


control = no_multiline_response

This control is permitted for any ACL except the one for non-SMTP messages. It seems that there are broken clients in use that cannot handle multiline SMTP responses, despite the fact that RFC 821 defined them over 20 years ago.

If this control is set, multiline SMTP responses from ACL rejections are suppressed. One way of doing this would have been to put out these responses as one long line. However, RFC 2821 specifies a maximum of 512 bytes per response (“use multiline responses for more” it says – ha!), and some of the responses might get close to that. So this facility, which is after all only a sop to broken clients, is implemented by doing two very easy things:

  1. Extra information that is normally output as part of a rejection caused by sender verification failure is omitted. Only the final line (typically “sender verification failed”) is sent.

  2. If a message modifier supplies a multiline response, only the first line is output.

The setting of the switch can, of course, be made conditional on the calling host. Its effect lasts until the end of the SMTP connection.


control = queue_only

This control is permitted only for the MAIL, RCPT, DATA, and non-SMTP ACLs, in other words, only when a message is being received. If the message is accepted, it is placed on Exim's queue and left there for delivery by a subsequent queue runner. No immediate delivery process is started. In other words, it has the effect as the queue_only global option. However, the control applies only to the current message, not to any subsequent ones that may be received in the same SMTP connection.


control = submission/<options>

This control is permitted only for the MAIL, RCPT, and start of data ACLs (the latter is the one defined by acl_smtp_predata). Setting it tells Exim that the current message is a submission from a local MUA. In this case, Exim operates in “submission mode”, and applies certain fixups to the message if necessary. For example, it add a Date: header line if one is not present. This control is not permitted in the acl_smtp_data ACL, because that is too late (the message has already been created).

Chapter 43 describes the processing that Exim applies to messages. Section 43.1 covers the processing that happens in submission mode; the available options for this control are described there. The control applies only to the current message, not to any subsequent ones that may be received in the same SMTP connection.



39.19 Adding header lines with the warn verb

The message modifier can be used on a warn statement to add an extra header line to an incoming message, as in this example:

  warn message = X-blacklisted-at: $dnslist_domain
       dnslists = sbl.spamhaus.org : \
                  dialup.mail-abuse.org

If an identical header line is requested several times (provoked, for example, by multiple RCPT commands), only one copy is actually added to the message. If the text of the message modifier contains one or more newlines that are not followed by a space or a tab, it is assumed to contain multiple header lines. Each one is checked for valid syntax; X-ACL-Warn: is added to the front of any line that is not a valid header line.

By default, new lines are added at the end of the existing header lines. However, you can specify that any particular header line should be added right at the start (before all the Received: lines), immediately after the first block of Received: lines, or immediately before any line that is not a Received: or Resent-something: header.

This is done by specifying “:at_start:”, “:after_received:”, or “:at_start_rfc:” (or, for completeness, “:at_end:”) before the text of the header line, respectively. (Header text cannot start with a colon, as there has to be a header name first.) For example:

  warn message = :after_received:X-My-Header: something or other...

If more than one header is supplied in a single warn statement, each one is treated independently and can therefore be placed differently. If you add more than one line at the start, or after the Received: block, they will end up in reverse order.

Warning: This facility currently applies only to header lines that are added in an ACL. It does NOT work for header lines that are added in a system filter or in a router or transport.

Header lines that are added by an ACL at MAIL or RCPT time are not visible in string expansions in ACLs for subsequent RCPT commands or in the acl_smtp_predata ACL. However, they are visible in string expansions in the ACL that is run after DATA is complete (the acl_smtp_data ACL). This is also true for header lines that are added in the acl_smtp_predata ACL. If a message is rejected after DATA, all added header lines are included in the entry that is written to the reject log.

If you want to preserve data between MAIL, RCPT, and the acl_smtp_predata ACLs, you can use ACL variables, as described in section 39.15.

39.20 ACL conditions

Some of conditions listed in this section are available only when Exim is compiled with the content-scanning extension. They are included here briefly for completeness. More detailed descriptions can be found in the discussion on content scanning in chapter 40.

Not all conditions are relevant in all circumstances. For example, testing senders and recipients does not make sense in an ACL that is being run as the result of the arrival of an ETRN command, and checks on message headers can be done only in the ACLs specified by acl_smtp_data and acl_not_smtp. You can use the same condition (with different parameters) more than once in the same ACL statement. This provides a way of specifying an “and” conjunction. The conditions are as follows:


acl = <name of acl or ACL string or file name >

The possible values of the argument are the same as for the acl_smtp_xxx options. The named or inline ACL is run. If it returns “accept” the condition is true; if it returns “deny” the condition is false. If it returns “defer”, the current ACL returns “defer” unless the condition is on a warn verb. In that case, a “defer” return makes the condition false. This means that further processing of the warn verb ceases, but processing of the ACL continues.

If the nested acl returns “drop” and the outer condition denies access, the connection is dropped. If it returns “discard”, the verb must be accept or discard, and the action is taken immediately – no further conditions are tested.

ACLs may be nested up to 20 deep; the limit exists purely to catch runaway loops. This condition allows you to use different ACLs in different circumstances. For example, different ACLs can be used to handle RCPT commands for different local users or different local domains.


authenticated = <string list>

If the SMTP connection is not authenticated, the condition is false. Otherwise, the name of the authenticator is tested against the list. To test for authentication by any authenticator, you can set

  authenticated = *

condition = <string>

This feature allows you to make up custom conditions. If the result of expanding the string is an empty string, the number zero, or one of the strings “no” or “false”, the condition is false. If the result is any non-zero number, or one of the strings “yes” or “true”, the condition is true. For any other values, some error is assumed to have occured, and the ACL returns “defer”.


decode = <location>

This condition is available only when Exim is compiled with the content-scanning extension, and it is allowed only the the ACL defined by acl_smtp_mime. It causes the current MIME part to be decoded into a file. For details, see chapter 40.


dnslists = <list of domain names and other data>

This condition checks for entries in DNS black lists. These are also known as “RBL lists”, after the original Realtime Blackhole List, but note that the use of the lists at mail-abuse.org now carries a charge. There are too many different variants of this condition to describe briefly here. See sections 39.21--39.29 for details.


domains = <domain list>

This condition is relevant only after a RCPT command. It checks that the domain of the recipient address is in the domain list. If percent-hack processing is enabled, it is done before this test is done. If the check succeeds with a lookup, the result of the lookup is placed in $domain_data until the next domains test.


encrypted = <string list>

If the SMTP connection is not encrypted, the condition is false. Otherwise, the name of the cipher suite in use is tested against the list. To test for encryption without testing for any specific cipher suite(s), set

  encrypted = *

hosts = < host list>

This condition tests that the calling host matches the host list. If you have name lookups or wildcarded host names and IP addresses in the same host list, you should normally put the IP addresses first. For example, you could have:

  accept hosts = 10.9.8.7 : dbm;/etc/friendly/hosts

The reason for this lies in the left-to-right way that Exim processes lists. It can test IP addresses without doing any DNS lookups, but when it reaches an item that requires a host name, it fails if it cannot find a host name to compare with the pattern. If the above list is given in the opposite order, the accept statement fails for a host whose name cannot be found, even if its IP address is 10.9.8.7.

If you really do want to do the name check first, and still recognize the IP address even if the name lookup fails, you can rewrite the ACL like this:

  accept hosts = dbm;/etc/friendly/hosts
  accept hosts = 10.9.8.7

The default action on failing to find the host name is to assume that the host is not in the list, so the first accept statement fails. The second statement can then check the IP address.

If a hosts condition is satisfied by means of a lookup, the result of the lookup is made available in the $host_data variable. This allows you, for example, to set up a statement like this:

  deny  hosts = net-lsearch;/some/file
        message = $host_data

which gives a custom error message for each denied host.


local_parts = <local part list>

This condition is relevant only after a RCPT command. It checks that the local part of the recipient address is in the list. If percent-hack processing is enabled, it is done before this test. If the check succeeds with a lookup, the result of the lookup is placed in $local_part_data until the next local_parts test.


malware = <option>

This condition is available only when Exim is compiled with the content-scanning extension. It causes the incoming message to be scanned for viruses. For details, see chapter 40.


mime_regex = <list of regular expressions>

This condition is available only when Exim is compiled with the content-scanning extension, and it is allowed only the the ACL defined by acl_smtp_mime. It causes the current MIME part to be scanned for a match with any of the regular expressions. For details, see chapter 40.


recipients = <address list>

This condition is relevant only after a RCPT command. It checks the entire recipient address against a list of recipients.


regex = <list of regular expressions>

This condition is available only when Exim is compiled with the content-scanning extension. It causes the incoming message to be scanned for a match with any of the regular expressions. For details, see chapter 40.


sender_domains = <domain list>

This condition tests the domain of the sender of the message against the given domain list. Note: the domain of the sender address is in $sender_address_domain. It is not put in $domain during the testing of this condition. This is an exception to the general rule for testing domain lists. It is done this way so that, if this condition is used in an ACL for a RCPT command, the recipient's domain (which is in $domain) can be used to influence the sender checking.


senders = <address list>

This condition tests the sender of the message against the given list. To test for a bounce message, which has an empty sender, set

  senders = :

spam = <username>

This condition is available only when Exim is compiled with the content-scanning extension. It causes the incoming message to be scanned by SpamAssassin. For details, see chapter 40.


verify = certificate

This condition is true in an SMTP session if the session is encrypted, and a certificate was received from the client, and the certificate was verified. The server requests a certificate only if the client matches tls_verify_hosts or tls_try_verify_hosts (see chapter 38).


verify = header_sender/<options>

This condition is relevant only in an ACL that is run after a message has been received, that is, in an ACL specified by acl_smtp_data or acl_not_smtp. It checks that there is a verifiable address in at least one of the Sender:, Reply-To:, or From: header lines. Such an address is loosely thought of as a “sender” address (hence the name of the test). However, an address that appears in one of these headers need not be an address that accepts bounce messages; only sender addresses in envelopes are required to accept bounces. Therefore, if you use the callout option on this check, you might want to arrange for a non-empty address in the MAIL command.

Details of address verification and the options are given later, starting at section 39.30 (callouts are described in section 39.31). You can combine this condition with the senders condition to restrict it to bounce messages only:

  deny    senders = :
          message = A valid sender header is required for bounces
         !verify  = header_sender

verify = header_syntax

This condition is relevant only in an ACL that is run after a message has been received, that is, in an ACL specified by acl_smtp_data or acl_not_smtp. It checks the syntax of all header lines that can contain lists of addresses (Sender:, From:, Reply-To:, To:, Cc:, and Bcc:). Unqualified addresses (local parts without domains) are permitted only in locally generated messages and from hosts that match sender_unqualified_hosts or recipient_unqualified_hosts, as appropriate.

Note that this condition is a syntax check only. However, a common spamming ploy is to send syntactically invalid headers such as

  To: @

and this condition can be used to reject such messages.


verify = helo

This condition is true if a HELO or EHLO command has been received from the client host, and its contents have been verified. Verification of these commands does not happen by default. See the description of the helo_verify_hosts and helo_try_verify_hosts options for details of how to request it.


verify = recipient/<options>

This condition is relevant only after a RCPT command. It verifies the current recipient. Details of address verification are given later, starting at section 39.30. After a recipient has been verified, the value of $address_data is the last value that was set while routing the address. This applies even if the verification fails. When an address that is being verified is redirected to a single address, verification continues with the new address, and in that case, the subsequent value of $address_data is the value for the child address.


verify = reverse_host_lookup

This condition ensures that a verified host name has been looked up from the IP address of the client host. (This may have happened already if the host name was needed for checking a host list, or if the host matched host_lookup.) Verification ensures that the host name obtained from a reverse DNS lookup, or one of its aliases, does, when it is itself looked up in the DNS, yield the original IP address.

If this condition is used for a locally generated message (that is, when there is no client host involved), it always succeeds.


verify = sender/<options>

This condition is relevant only after a MAIL or RCPT command, or after a message has been received (the acl_smtp_data or acl_not_smtp ACLs). If the message's sender is empty (that is, this is a bounce message), the condition is true. Otherwise, the sender address is verified. If there is data in the $address_data variable at the end of routing, its value is placed in $sender_address_data at the end of verification. This value can be used in subsequent conditions and modifiers in the same ACL statement. It does not persist after the end of the current statement. If you want to preserve the value for longer, you can save it in an ACL variable.

Details of verification are given later, starting at section 39.30. Exim caches the result of sender verification, to avoid doing it more than once per message.


verify = sender=<address>/<options>

This is a variation of the previous option, in which a modified address is verified as a sender.



39.21 Using DNS lists

In its simplest form, the dnslists condition tests whether the calling host is on at least one of a number of DNS lists by looking up the inverted IP address in one or more DNS domains. For example, if the calling host's IP address is 192.168.62.43, and the ACL statement is

  deny dnslists = blackholes.mail-abuse.org : \
                  dialups.mail-abuse.org

the following records are looked up:

  43.62.168.192.blackholes.mail-abuse.org
  43.62.168.192.dialups.mail-abuse.org

As soon as Exim finds an existing DNS record, processing of the list stops. Thus, multiple entries on the list provide an “or” conjunction. If you want to test that a host is on more than one list (an “and” conjunction), you can use two separate conditions:

  deny dnslists = blackholes.mail-abuse.org
       dnslists = dialups.mail-abuse.org

If a DNS lookup times out or otherwise fails to give a decisive answer, Exim behaves as if the host does not match the list item, that is, as if the DNS record does not exist. If there are further items in the DNS list, they are processed. This is usually the required action when dnslists is used with deny (which is the most common usage), because it prevents a DNS failure from blocking mail. However, you can change this behaviour by putting one of the following special items in the list:

  +include_unknown behave as if the item is on the list
  +exclude_unknown behave as if the item is not on the list (default)
  +defer_unknown give a temporary error

Each of these applies to any subsequent items on the list. For example:

  deny dnslists = +defer_unknown : foo.bar.example

Testing the list of domains stops as soon as a match is found. If you want to warn for one list and block for another, you can use two different statements:

  deny  dnslists = blackholes.mail-abuse.org
  warn  message  = X-Warn: sending host is on dialups list
        dnslists = dialups.mail-abuse.org

DNS list lookups are cached by Exim for the duration of the SMTP session, so a lookup based on the IP address is done at most once for any incoming connection. Exim does not share information between multiple incoming connections (but your local name server cache should be active).

39.22 Specifying the IP address for a DNS list lookup

By default, the IP address that is used in a DNS list lookup is the IP address of the calling host. However, you can specify another IP address by listing it after the domain name, introduced by a slash. For example:

  deny dnslists = black.list.tls/192.168.1.2

This feature is not very helpful with explicit IP addresses; it is intended for use with IP addresses that are looked up, for example, the IP addresses of the MX hosts or nameservers of an email sender address. For an example, see section 39.24 below.

39.23 DNS lists keyed on domain names

There are some lists that are keyed on domain names rather than inverted IP addresses (see for example the domain based zones link at http://www.rfc-ignorant.org/). No reversing of components is used with these lists. You can change the name that is looked up in a DNS list by listing it after the domain name, introduced by a slash. For example,

  deny  message  = Sender's domain is listed at $dnslist_domain
        dnslists = dsn.rfc-ignorant.org/$sender_address_domain

This particular example is useful only in ACLs that are obeyed after the RCPT or DATA commands, when a sender address is available. If (for example) the message's sender is user@tld.example the name that is looked up by this example is

  tld.example.dsn.rfc-ignorant.org

A single dnslists condition can contain entries for both names and IP addresses. For example:

  deny dnslists = sbl.spamhaus.org : \
                  dsn.rfc-ignorant.org/$sender_address_domain

The first item checks the sending host's IP address; the second checks a domain name. The whole condition is true if either of the DNS lookups succeeds.

39.24 Multiple explicit keys for a DNS list

The syntax described above for looking up explicitly-defined values (either names or IP addresses) in a DNS blacklist is a simplification. After the domain name for the DNS list, what follows the slash can in fact be a list of items. As with all lists in Exim, the default separator is a colon. However, because this is a sublist within the list of DNS blacklist domains, it is necessary either to double the separators like this:

  dnslists = black.list.tld/name.1::name.2

or to change the separator character, like this:

  dnslists = black.list.tld/<;name.1;name.2

If an item in the list is an IP address, it is inverted before the DNS blacklist domain is appended. If it is not an IP address, no inversion occurs. Consider this condition:

  dnslists = black.list.tld/<;192.168.1.2;a.domain

The DNS lookups that occur are:

  2.1.168.192.black.list.tld
  a.domain.black.list.tld

Once a DNS record has been found (that matches a specific IP return address, if specified – see section 39.27), no further lookups are done. If there is a temporary DNS error, the rest of the sublist of domains or IP addresses is tried. A temporary error for the whole dnslists item occurs only if no other DNS lookup in this sublist succeeds. In other words, a successful lookup for any of the items in the sublist overrides a temporary error for a previous item.

The ability to supply a list of items after the slash is in some sense just a syntactic convenience. These two examples have the same effect:

  dnslists = black.list.tld/a.domain : black.list.tld/b.domain
  dnslists = black.list.tld/a.domain::b.domain

However, when the data for the list is obtained from a lookup, the second form is usually much more convenient. Consider this example:

  deny message  =  The mail servers for the domain \
                   $sender_address_domain \
                   are listed at $dnslist_domain ($dnslist_value); \
                   see $dnslist_text.
       dnslists =  sbl.spamhaus.org/<|${lookup dnsdb {>|a=<|\
                                      ${lookup dnsdb {>|mxh=\
                                      $sender_address_domain} }} }

Note the use of >| in the dnsdb lookup to specify the separator for multiple DNS records. The inner dnsdb lookup produces a list of MX hosts and the outer dnsdb lookup finds the IP addresses for these hosts. The result of expanding the condition might be something like this:

  dnslists = sbl.spahmaus.org/<|192.168.2.3|192.168.5.6|...

Thus, this example checks whether or not the IP addresses of the sender domain's mail servers are on the Spamhaus black list.

39.25 Data returned by DNS lists

DNS lists are constructed using address records in the DNS. The original RBL just used the address 127.0.0.1 on the right hand side of each record, but the RBL+ list and some other lists use a number of values with different meanings. The values used on the RBL+ list are:

  127.1.0.1  RBL
  127.1.0.2  DUL
  127.1.0.3  DUL and RBL
  127.1.0.4  RSS
  127.1.0.5  RSS and RBL
  127.1.0.6  RSS and DUL
  127.1.0.7  RSS and DUL and RBL

Some DNS lists may return more than one address record.

39.26 Variables set from DNS lists

When an entry is found in a DNS list, the variable $dnslist_domain contains the name of the domain that matched, $dnslist_value contains the data from the entry, and $dnslist_text contains the contents of any associated TXT record. If more than one address record is returned by the DNS lookup, all the IP addresses are included in $dnslist_value, separated by commas and spaces.

You can use these variables in message or log_message modifiers – although these appear before the condition in the ACL, they are not expanded until after it has failed. For example:

  deny    hosts = !+local_networks
          message = $sender_host_address is listed \
                    at $dnslist_domain
          dnslists = rbl-plus.mail-abuse.example

39.27 Additional matching conditions for DNS lists

You can add an equals sign and an IP address after a dnslists domain name in order to restrict its action to DNS records with a matching right hand side. For example,

  deny dnslists = rblplus.mail-abuse.org=127.0.0.2

rejects only those hosts that yield 127.0.0.2. Without this additional data, any address record is considered to be a match. If more than one address record is found on the list, they are all checked for a matching right-hand side.

More than one IP address may be given for checking, using a comma as a separator. These are alternatives – if any one of them matches, the dnslists condition is true. For example:

  deny  dnslists = a.b.c=127.0.0.2,127.0.0.3

If you want to specify a constraining address list and also specify names or IP addresses to be looked up, the constraining address list must be specified first. For example:

  deny dnslists = dsn.rfc-ignorant.org\
                  =127.0.0.2/$sender_address_domain

If the character “&” is used instead of “=”, the comparison for each listed IP address is done by a bitwise “and” instead of by an equality test. In other words, the listed addresses are used as bit masks. The comparison is true if all the bits in the mask are present in the address that is being tested. For example:

  dnslists = a.b.c&0.0.0.3

matches if the address is x.x.x.3, x.x.x.7, x.x.x.11, etc. If you want to test whether one bit or another bit is present (as opposed to both being present), you must use multiple values. For example:

  dnslists = a.b.c&0.0.0.1,0.0.0.2

matches if the final component of the address is an odd number or two times an odd number.

39.28 Negated DNS matching conditions

You can supply a negative list of IP addresses as part of a dnslists condition. Whereas

  deny  dnslists = a.b.c=127.0.0.2,127.0.0.3

means “deny if the host is in the black list at the domain a.b.c and the IP address yielded by the list is either 127.0.0.2 or 127.0.0.3”,

  deny  dnslists = a.b.c!=127.0.0.2,127.0.0.3

means “deny if the host is in the black list at the domain a.b.c and the IP address yielded by the list is not 127.0.0.2 and not 127.0.0.3”. In other words, the result of the test is inverted if an exclamation mark appears before the “=” (or the “&”) sign.

Note: this kind of negation is not the same as negation in a domain, host, or address list (which is why the syntax is different).

If you are using just one list, the negation syntax does not gain you much. The previous example is precisely equivalent to

  deny  dnslists = a.b.c
       !dnslists = a.b.c=127.0.0.2,127.0.0.3

However, if you are using multiple lists, the negation syntax is clearer. Consider this example:

  deny  dnslists = sbl.spamhaus.org : \
                   list.dsbl.org : \
                   dnsbl.njabl.org!=127.0.0.3 : \
                   relays.ordb.org

Using only positive lists, this would have to be:

  deny  dnslists = sbl.spamhaus.org : \
                   list.dsbl.org
  deny  dnslists = dnsbl.njabl.org
       !dnslists = dnsbl.njabl.org=127.0.0.3
  deny  dnslists = relays.ordb.org

which is less clear, and harder to maintain.

39.29 DNS lists and IPv6

If Exim is asked to do a dnslist lookup for an IPv6 address, it inverts it nibble by nibble. For example, if the calling host's IP address is 3ffe:ffff:836f:0a00:000a:0800:200a:c031, Exim might look up

  1.3.0.c.a.0.0.2.0.0.8.0.a.0.0.0.0.0.a.0.f.6.3.8.
    f.f.f.f.e.f.f.3.blackholes.mail-abuse.org

(split over two lines here to fit on the page). Unfortunately, some of the DNS lists contain wildcard records, intended for IPv4, that interact badly with IPv6. For example, the DNS entry

  *.3.some.list.example.    A    127.0.0.1

is probably intended to put the entire 3.0.0.0/8 IPv4 network on the list. Unfortunately, it also matches the entire 3::/4 IPv6 network.

You can exclude IPv6 addresses from DNS lookups by making use of a suitable condition condition, as in this example:

  deny   condition = ${if isip4{$sender_host_address}}
         dnslists  = some.list.example

39.30 Address verification

Several of the verify conditions described in section 39.20 cause addresses to be verified. These conditions can be followed by options that modify the verification process. The options are separated from the keyword and from each other by slashes, and some of them contain parameters. For example:

  verify = sender/callout
  verify = recipient/defer_ok/callout=10s,defer_ok

The first stage of address verification, which always happens, is to run the address through the routers, in “verify mode”. Routers can detect the difference between verification and routing for delivery, and their actions can be varied by a number of generic options such as verify and verify_only (see chapter 15). If routing fails, verification fails. The available options are as follows:

After an address verification failure, $sender_verify_failure or $recipient_verify_failure (as appropriate) contains one of the following words:

The main use of these variables is expected to be to distinguish between rejections of MAIL and rejections of RCPT in callouts.

39.31 Callout verification

For non-local addresses, routing verifies the domain, but is unable to do any checking of the local part. There are situations where some means of verifying the local part is desirable. One way this can be done is to make an SMTP callback to the sending host (for a sender address) or a callforward to a subsequent host (for a recipient address), to see if the host accepts the address. We use the term callout to cover both cases. This facility should be used with care, because it can add a lot of resource usage to the cost of verifying an address. However, Exim does cache the results of callouts, which helps to reduce the cost. Details of caching are in the next section.

Recipient callouts are usually used only between hosts that are controlled by the same administration. For example, a corporate gateway host could use callouts to check for valid recipients on an internal mailserver. A successful callout does not guarantee that a real delivery to the address would succeed; on the other hand, a failing callout does guarantee that a delivery would fail.

If the callout option is present on a condition that verifies an address, a second stage of verification occurs if the address is successfully routed to one or more remote hosts. The usual case is routing by a dnslookup or a manualroute router, where the router specifies the hosts. However, if a router that does not set up hosts routes to an smtp transport with a hosts setting, the transport's hosts are used. If an smtp transport has hosts_override set, its hosts are always used, whether or not the router supplies a host list.

The port that is used is taken from the transport, if it is specified and is a remote transport. (For routers that do verification only, no transport need be specified.) Otherwise, the default SMTP port is used. If a remote transport specifies an outgoing interface, this is used; otherwise the interface is not specified.

For a sender callout check, Exim makes SMTP connections to the remote hosts, to test whether a bounce message could be delivered to the sender address. The following SMTP commands are sent:

  HELO <smtp active host name>
  MAIL FROM:<>
  RCPT TO:<the address to be tested>
  QUIT

LHLO is used instead of HELO if the transport's protocol option is set to “lmtp”.

A recipient callout check is similar. By default, it also uses an empty address for the sender. This default is chosen because most hosts do not make use of the sender address when verifying a recipient. Using the same address means that a single cache entry can be used for each recipient. Some sites, however, do make use of the sender address when verifying. These are catered for by the use_sender and use_postmaster options, described in the next section.

If the response to the RCPT command is a 2xx code, the verification succeeds. If it is 5xx, the verification fails. For any other condition, Exim tries the next host, if any. If there is a problem with all the remote hosts, the ACL yields “defer”, unless the defer_ok parameter of the callout option is given, in which case the condition is forced to succeed.

39.32 Additional parameters for callouts

The callout option can be followed by an equals sign and a number of optional parameters, separated by commas. For example:

  verify = recipient/callout=10s,defer_ok

The old syntax, which had callout_defer_ok and check_postmaster as separate verify options, is retained for backwards compatibility, but is now deprecated. The additional parameters for callout are as follows:


<a time interval>

This specifies the timeout that applies for the callout attempt to each host. For example:

  verify = sender/callout=5s

The default is 30 seconds. The timeout is used for each response from the remote host. It is also used for the intial connection, unless overridden by the connect parameter.


connect = <time interval>

This parameter makes it possible to set a different (usually smaller) timeout for making the SMTP connection. For example:

  verify = sender/callout=5s,connect=1s

If not specified, this timeout defaults to the general timeout value.


defer_ok

When this parameter is present, failure to contact any host, or any other kind of temporary error, is treated as success by the ACL. However, the cache is not updated in this circumstance.


mailfrom = <email address>

When verifying addresses in header lines using the header_sender verification option, Exim behaves by default as if the addresses are envelope sender addresses from a message. Callout verification therefore tests to see whether a bounce message could be delivered, by using an empty address in the MAIL command. However, it is arguable that these addresses might never be used as envelope senders, and could therefore justifiably reject bounce messages (empty senders). The mailfrom callout parameter allows you to specify what address to use in the MAIL command. For example:

  require  verify = header_sender/callout=mailfrom=abcd@x.y.z

This parameter is available only for the header_sender verification option.


maxwait = <time interval>

This parameter sets an overall timeout for performing a callout verification. For example:

  verify = sender/callout=5s,maxwait=30s

This timeout defaults to four times the callout timeout for individual SMTP commands. The overall timeout applies when there is more than one host that can be tried. The timeout is checked before trying the next host. This prevents very long delays if there are a large number of hosts and all are timing out (for example, when network connections are timing out).


no_cache

When this parameter is given, the callout cache is neither read nor updated.


postmaster

When this parameter is set, a sucessful callout check is followed by a similar check for the local part postmaster at the same domain. If this address is rejected, the callout fails. The result of the postmaster check is recorded in a cache record; if it is a failure, this is used to fail subsequent callouts for the domain without a connection being made, until the cache record expires.


postmaster_mailfrom = <email address>

The postmaster check uses an empty sender in the MAIL command by default. You can use this parameter to do a postmaster check using a different address. For example:

  require  verify = sender/callout=postmaster_mailfrom=abc@x.y.z

If both postmaster and postmaster_mailfrom are present, the rightmost one overrides. The postmaster parameter is equivalent to this example:

  require  verify = sender/callout=postmaster_mailfrom=

Warning: The caching arrangements for postmaster checking do not take account of the sender address. It is assumed that either the empty address or a fixed non-empty address will be used. All that Exim remembers is that the postmaster check for the domain succeeded or failed.


random

When this parameter is set, before doing the normal callout check, Exim does a check for a “random” local part at the same domain. The local part is not really random – it is defined by the expansion of the option callout_random_local_part, which defaults to

  $primary_host_name-$tod_epoch-testing

The idea here is to try to determine whether the remote host accepts all local parts without checking. If it does, there is no point in doing callouts for specific local parts. If the “random” check succeeds, the result is saved in a cache record, and used to force the current and subsequent callout checks to succeed without a connection being made, until the cache record expires.


use_postmaster

This parameter applies to recipient callouts only. For example:

  deny  !verify = recipient/callout=use_postmaster

It causes a non-empty postmaster address to be used in the MAIL command when performing the callout. The local part of the address is postmaster and the domain is the contents of $qualify_domain.


use_sender

This option applies to recipient callouts only. For example:

  require  verify = recipient/callout=use_sender

It causes the message's actual sender address to be used in the MAIL command when performing the callout, instead of an empty address. There is no need to use this option unless you know that the called hosts make use of the sender when checking recipients. If used indiscriminately, it reduces the usefulness of callout caching.



If you use any of the parameters that set a non-empty sender for the MAIL command (mailfrom, postmaster_mailfrom, use_postmaster, or use_sender), you should think about possible loops. Recipient checking is usually done between two hosts that are under the same management, and the host that receives the callouts is not normally configured to do callouts itself. Therefore, it is normally safe to use use_postmaster or use_sender in these circumstances.

However, if you use a non-empty sender address for a callout to an arbitrary host, there is the likelihood that the remote host will itself initiate a callout check back to your host. As it is checking what appears to be a message sender, it is likely to use an empty address in MAIL, thus avoiding a callout loop. However, to be on the safe side it would be best to set up your own ACLs so that they do not do sender verification checks when the recipient is the address you use for header sender or postmaster callout checking.

Another issue to think about when using non-empty senders for callouts is caching. When you set mailfrom or use_sender, the cache record is keyed by the sender/recipient combination; thus, for any given recipient, many more actual callouts are performed than when an empty sender or postmaster is used.

39.33 Callout caching

Exim caches the results of callouts in order to reduce the amount of resources used, unless you specify the no_cache parameter with the callout option. A hints database called “callout” is used for the cache. Two different record types are used: one records the result of a callout check for a specific address, and the other records information that applies to the entire domain (for example, that it accepts the local part postmaster).

When an original callout fails, a detailed SMTP error message is given about the failure. However, for subsequent failures use the cache data, this message is not available.

The expiry times for negative and positive address cache records are independent, and can be set by the global options callout_negative_expire (default 2h) and callout_positive_expire (default 24h), respectively.

If a host gives a negative response to an SMTP connection, or rejects any commands up to and including

  MAIL FROM:<>

(but not including the MAIL command with a non-empty address), any callout attempt is bound to fail. Exim remembers such failures in a domain cache record, which it uses to fail callouts for the domain without making new connections, until the domain record times out. There are two separate expiry times for domain cache records: callout_domain_negative_expire (default 3h) and callout_domain_positive_expire (default 7d).

Domain records expire when the negative expiry time is reached if callouts cannot be made for the domain, or if the postmaster check failed. Otherwise, they expire when the positive expiry time is reached. This ensures that, for example, a host that stops accepting “random” local parts will eventually be noticed.

The callout caching mechanism is based on the domain of the address that is being tested. If the domain routes to several hosts, it is assumed that their behaviour will be the same.

39.34 Sender address verification reporting

When sender verification fails in an ACL, the details of the failure are given as additional output lines before the 550 response to the relevant SMTP command (RCPT or DATA). For example, if sender callout is in use, you might see:

  MAIL FROM:<xyz@abc.example>
  250 OK
  RCPT TO:<pqr@def.example>
  550-Verification failed for <xyz@abc.example>
  550-Called:   192.168.34.43
  550-Sent:     RCPT TO:<xyz@abc.example>
  550-Response: 550 Unknown local part xyz in <xyz@abc.example>
  550 Sender verification failed

If more than one RCPT command fails in the same way, the details are given only for the first of them. However, some administrators do not want to send out this much information. You can suppress the details by adding “/no_details” to the ACL statement that requests sender verification. For example:

  verify = sender/no_details

39.35 Redirection while verifying

A dilemma arises when a local address is redirected by aliasing or forwarding during verification: should the generated addresses themselves be verified, or should the successful expansion of the original address be enough to verify it? Exim takes the following pragmatic approach:

This seems the most reasonable behaviour for the common use of aliasing as a way of redirecting different local parts to the same mailbox. It means, for example, that a pair of alias entries of the form

  A.Wol:   aw123
  aw123:   :fail: Gone away, no forwarding address

work as expected, with both local parts causing verification failure. When a redirection generates more than one address, the behaviour is more like a mailing list, where the existence of the alias itself is sufficient for verification to succeed.

39.36 Using an ACL to control relaying

An MTA is said to relay a message if it receives it from some host and delivers it directly to another host as a result of a remote address contained within it. Redirecting a local address via an alias or forward file and then passing the message on to another host is not relaying, but a redirection as a result of the “percent hack” is.

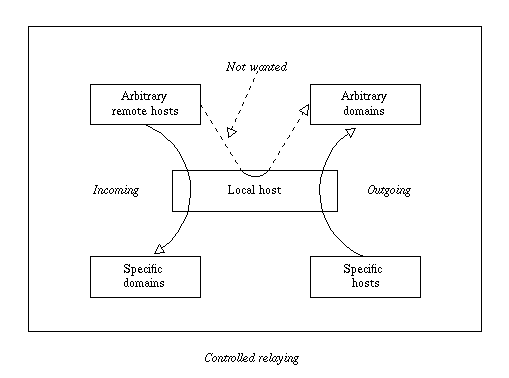

Two kinds of relaying exist, which are termed “incoming” and “outgoing”. A host which is acting as a gateway or an MX backup is concerned with incoming relaying from arbitrary hosts to a specific set of domains. On the other hand, a host which is acting as a smart host for a number of clients is concerned with outgoing relaying from those clients to the Internet at large. Often the same host is fulfilling both functions, as illustrated in the diagram below, but in principle these two kinds of relaying are entirely independent. What is not wanted is the transmission of mail from arbitrary remote hosts through your system to arbitrary domains.

Controlled relaying

You can implement relay control by means of suitable statements in the ACL that runs for each RCPT command. For convenience, it is often easiest to use Exim's named list facility to define the domains and hosts involved. For example, suppose you want to do the following:

In the main part of the configuration, you put the following definitions:

  domainlist local_domains = my.dom1.example : my.dom2.example
  domainlist relay_domains = friend1.example : friend2.example
  hostlist   relay_hosts   = 192.168.45.0/24

Now you can use these definitions in the ACL that is run for every RCPT command:

  acl_check_rcpt:
    accept domains = +local_domains : +relay_domains
    accept hosts   = +relay_hosts

The first statement accepts any RCPT command that contains an address in the local or relay domains. For any other domain, control passes to the second statement, which accepts the command only if it comes from one of the relay hosts. In practice, you will probably want to make your ACL more sophisticated than this, for example, by including sender and recipient verification. The default configuration includes a more comprehensive example, which is described in chapter 7.

39.37 Checking a relay configuration

You can check the relay characteristics of your configuration in the same way that you can test any ACL behaviour for an incoming SMTP connection, by using the -bh option to run a fake SMTP session with which you interact.

For specifically testing for unwanted relaying, the host relay-test.mail-abuse.org provides a useful service. If you telnet to this host from the host on which Exim is running, using the normal telnet port, you will see a normal telnet connection message and then quite a long delay. Be patient. The remote host is making an SMTP connection back to your host, and trying a number of common probes to test for open relay vulnerability. The results of the tests will eventually appear on your terminal.


Previous  Next  Contents       (Exim 4.50 Specification)
